Sample Drawing Sets
Excerpts from real Neo-Scenic drawing sets, with client details removed. Open any drawing at full size to read the notes and dimensions.
These are drawings, not photographs of finished work. Each one comes from a real Neo-Scenic project, with names, addresses and title blocks removed. Every drawing set is different: what it includes depends on the project, the existing conditions and what the municipality asks for.
Decks
Plans, sections and details from two deck projects: a two-level rear deck and a front porch deck.

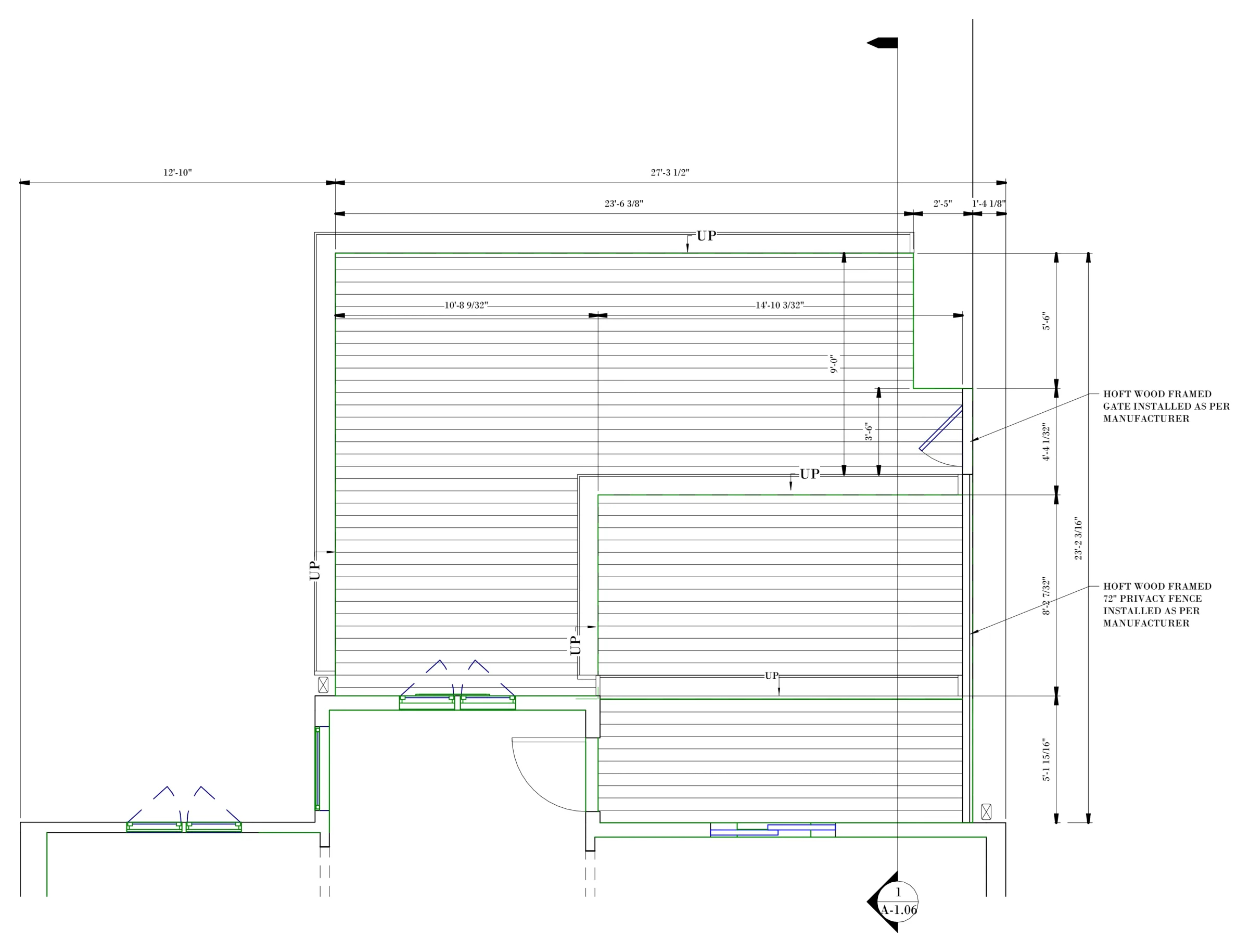

Plan of a two-level rear deck with overall dimensions, stairs, a gate and a privacy fence. Open full size: Plan of a two-level rear deck with dimensions, stairs, a gate and a privacy fence (opens in a new tab)

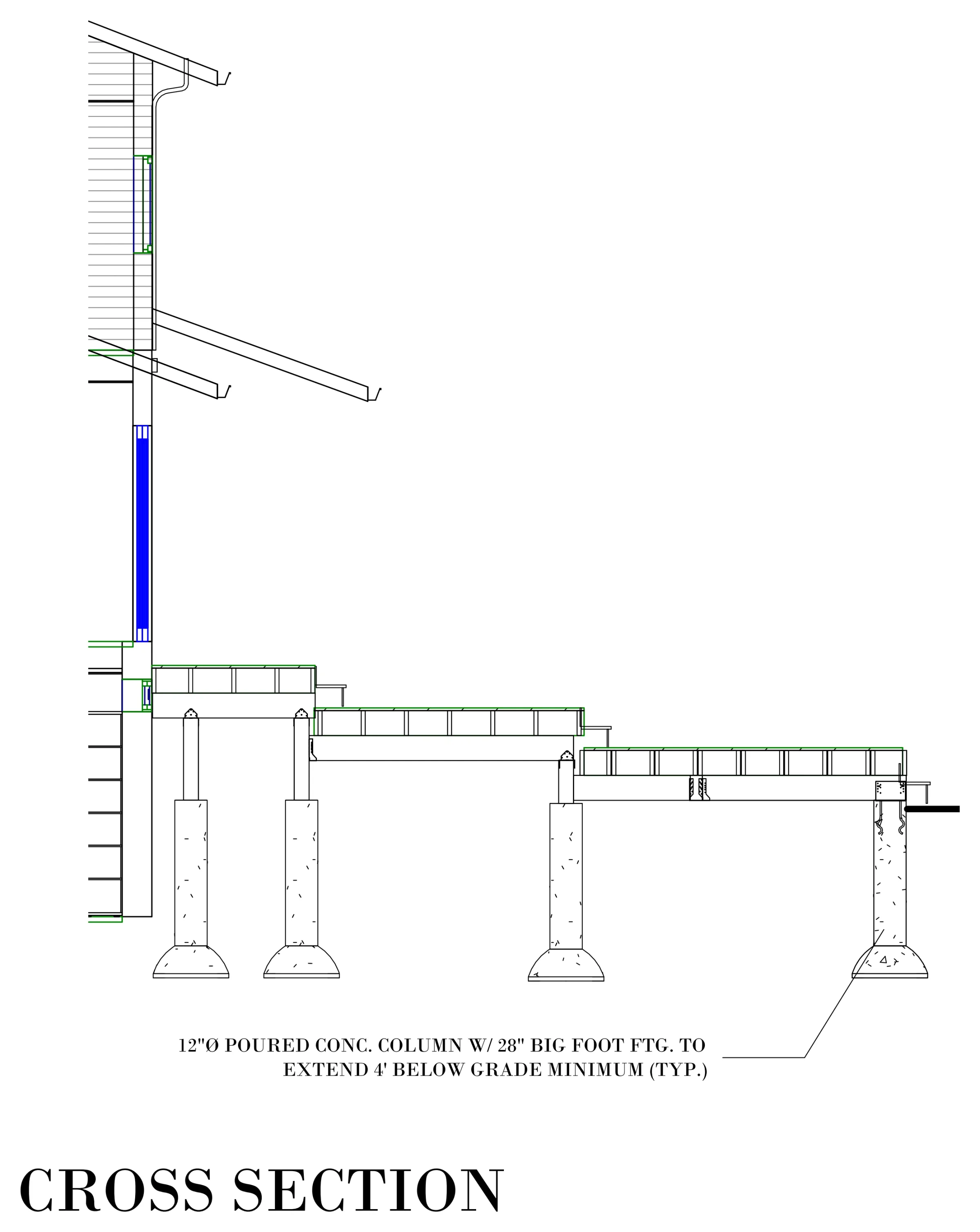

Cross section of the same deck, with poured concrete columns and footings below grade. Open full size: Cross section of a two-level deck with concrete columns and footings extending below grade (opens in a new tab)

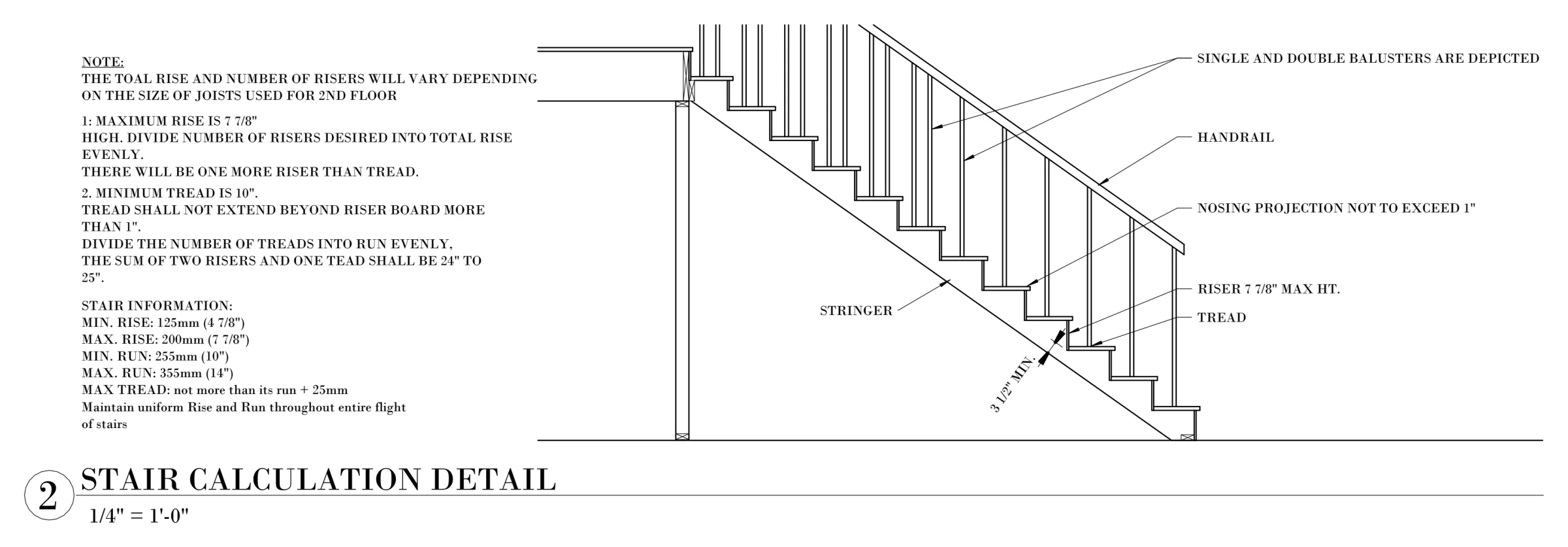

Stair calculation detail from a front porch deck, with rise, run, nosing and handrail notes. Open full size: Stair detail with stringer, treads, risers, handrail and rise and run limits (opens in a new tab)
Finished basements
A finished basement layout, without a separate unit.

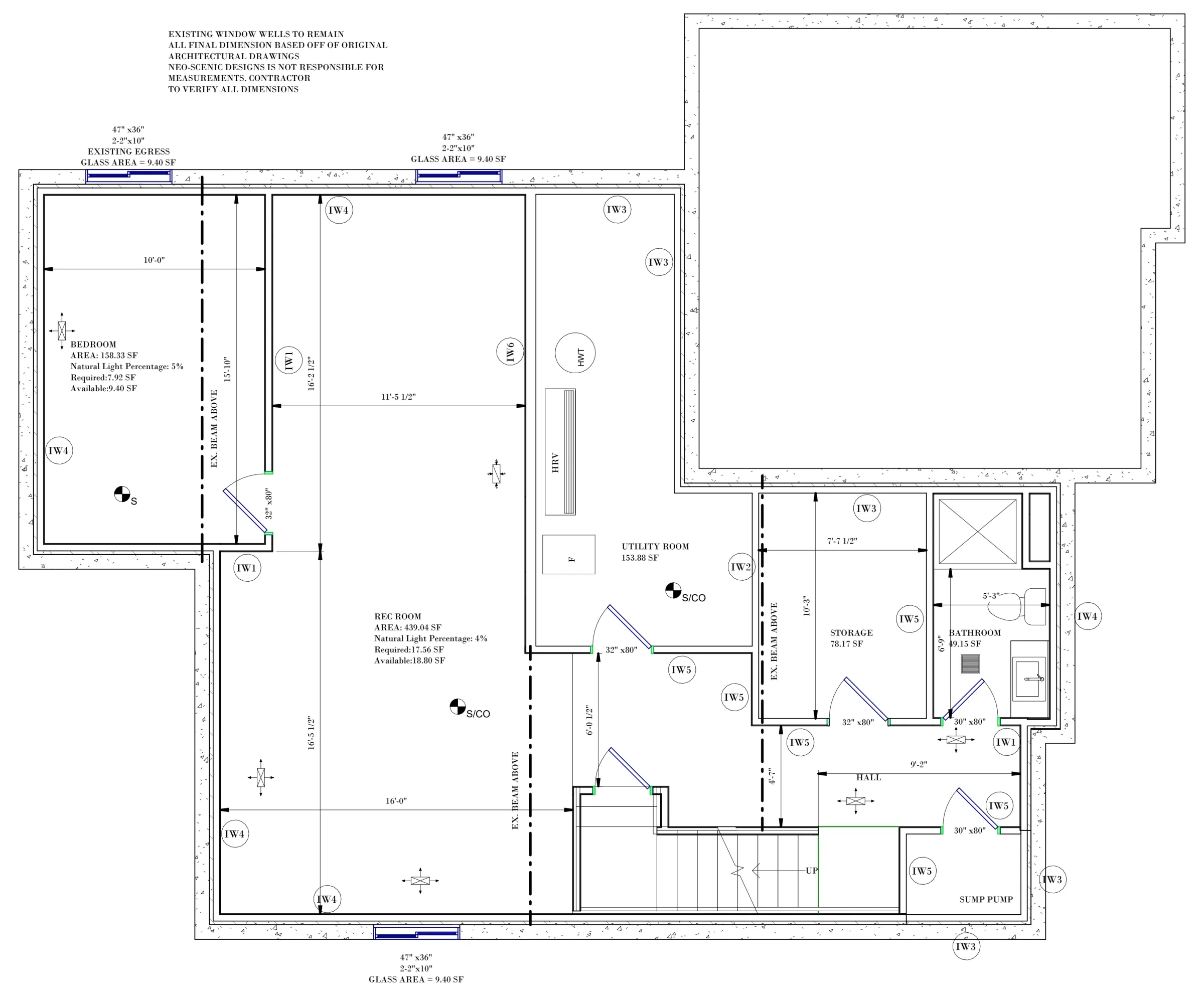

Proposed finished basement plan with a bedroom, recreation room, bathroom and utility areas, with dimensions and wall type tags. Open full size: Proposed finished basement plan with a bedroom, recreation room, bathroom, storage and utility room, with dimensions and wall type tags (opens in a new tab)
Secondary suites
A basement converted into a separate unit: the existing basement, the proposed unit, and the separate entrances on the floor above.

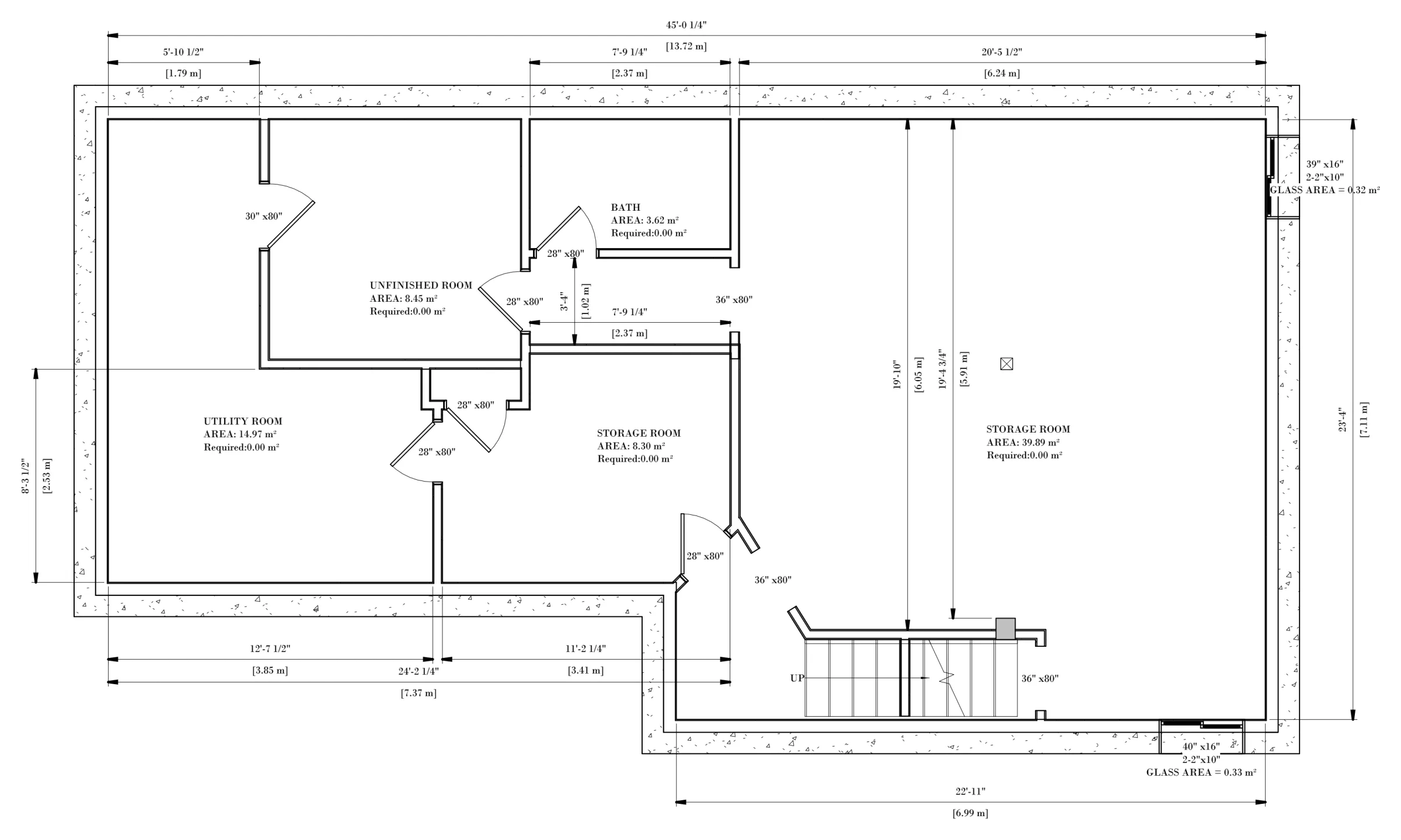

Existing Basement floor plan. Open full size: Existing basement plan with utility, storage and unfinished rooms (opens in a new tab)

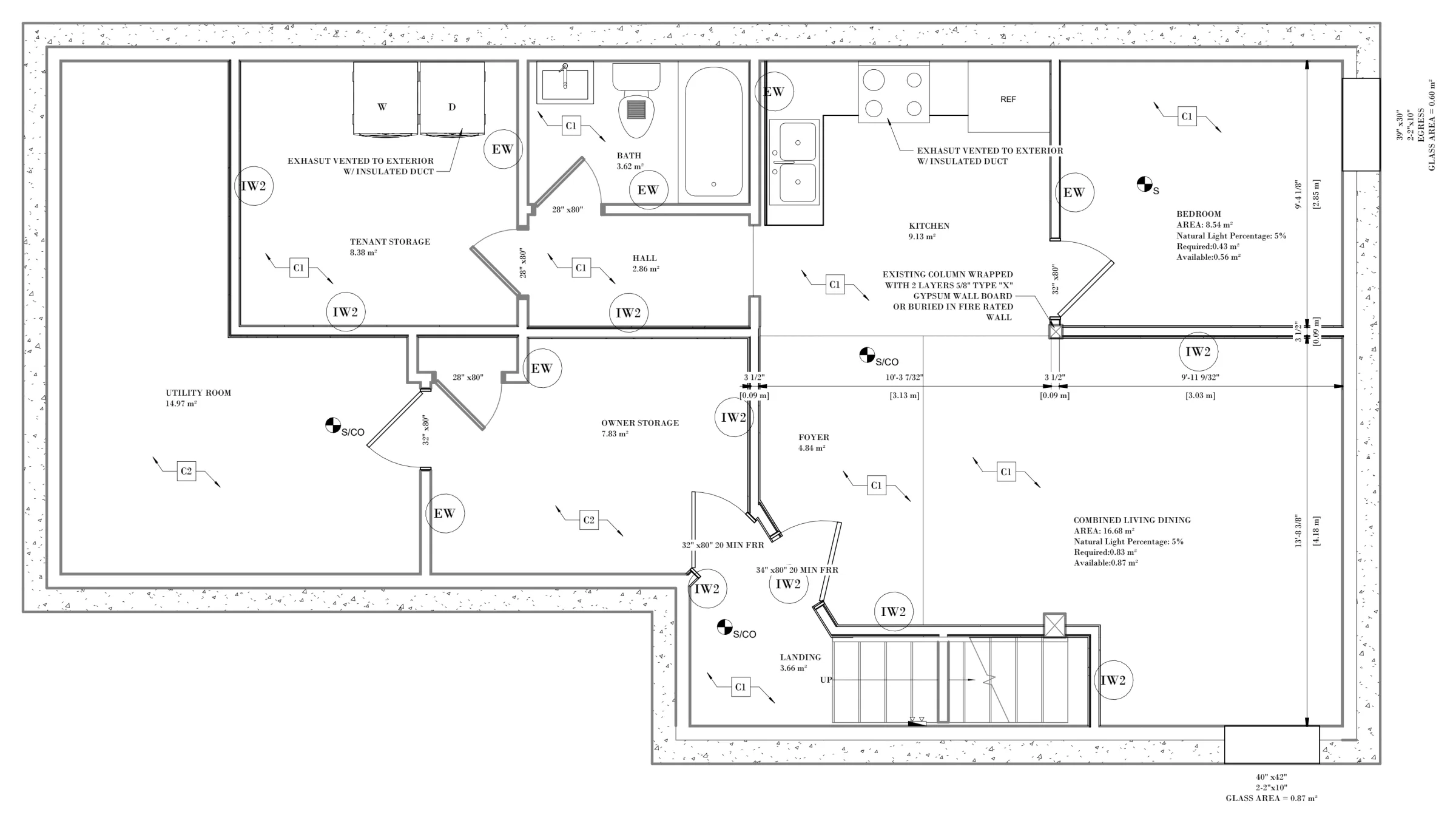

New The same basement as a separate unit, with a bedroom, kitchen, bathroom and fire-rated doors. Open full size: Proposed basement unit plan with a bedroom, kitchen, bathroom, storage and fire-rated doors (opens in a new tab)

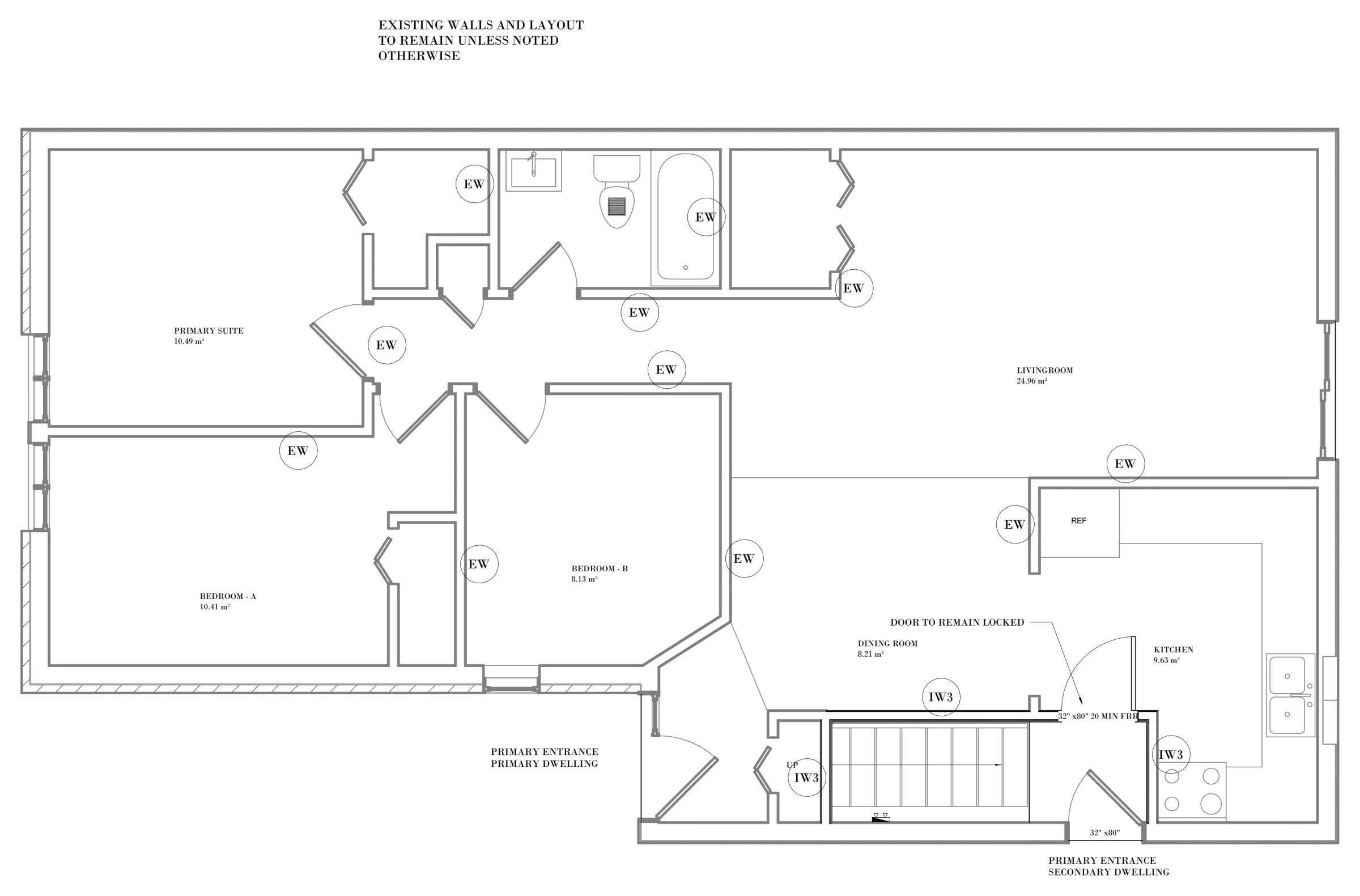

First floor plan marking the separate entrances for the main dwelling and the secondary unit. Open full size: First floor plan marking separate entrances for the main dwelling and the secondary unit (opens in a new tab)
Detached garages and backyard units
A 3D view of a detached garage, and construction drawings from a detached additional residential unit.

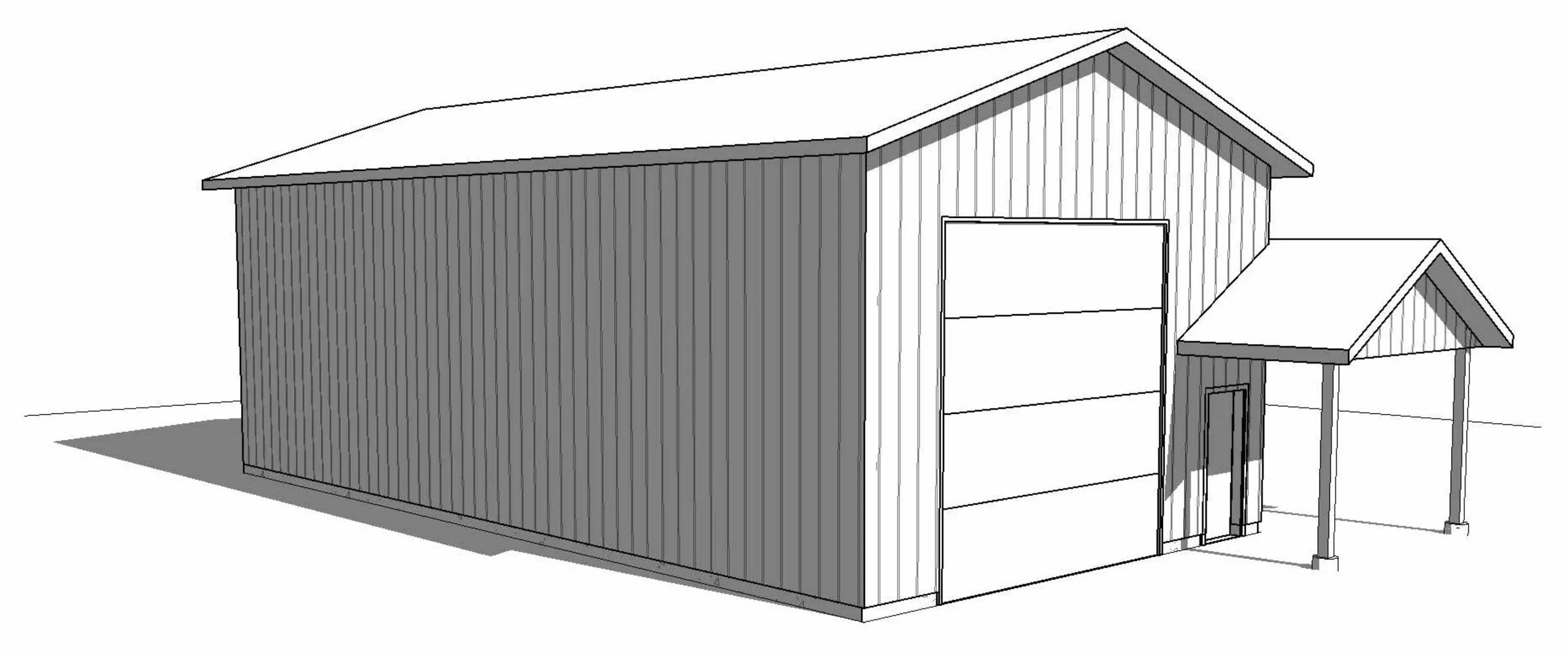

3D view of a steel-clad detached garage with a tall overhead door and a covered side entry. Open full size: 3D model view of a steel-clad detached garage with a tall overhead door and a covered side entry (opens in a new tab)

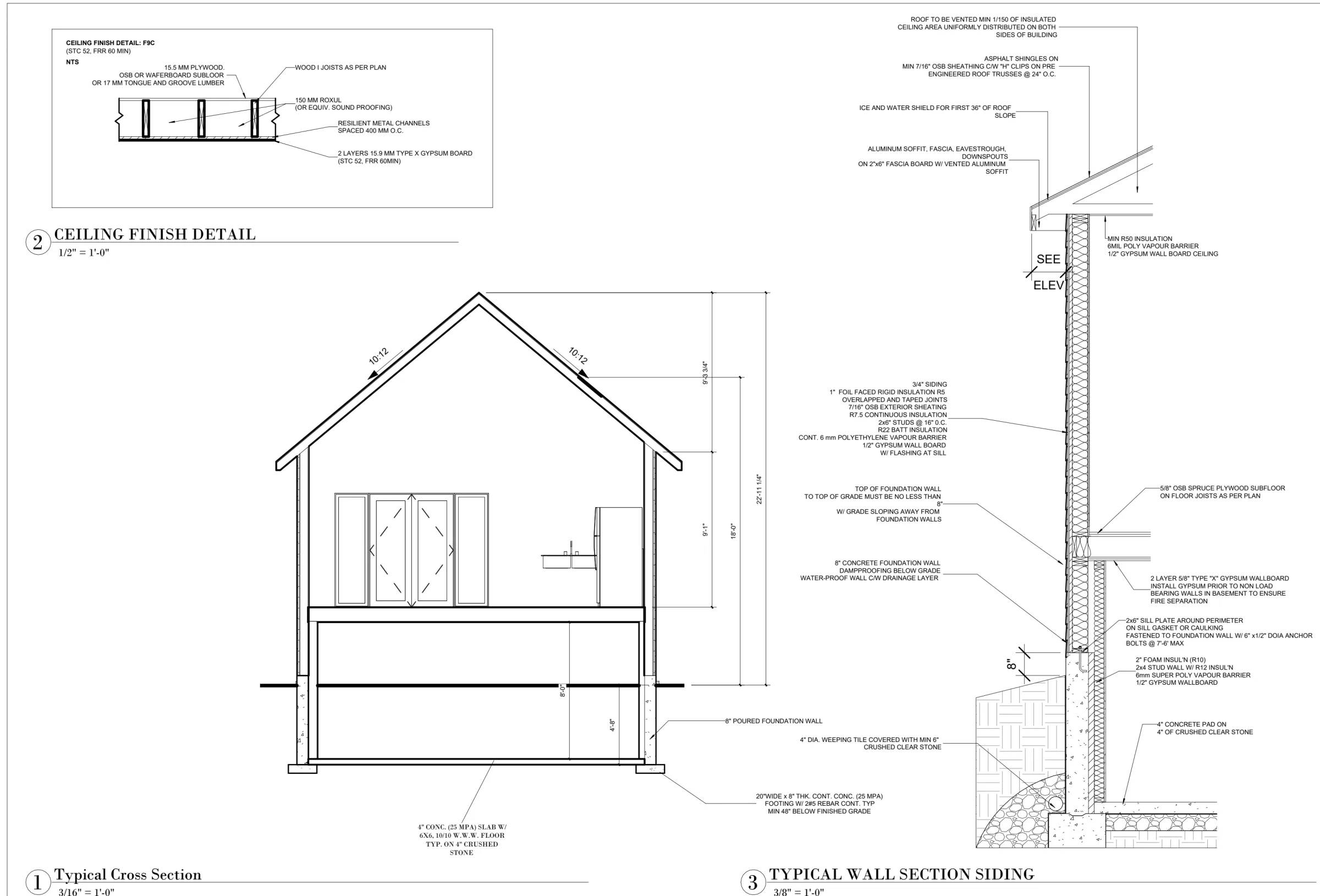

Section sheet for a detached unit: building cross section, wall section and ceiling assembly detail. Open full size: Building cross section of a detached unit beside a detailed wall section and a ceiling assembly detail (opens in a new tab)

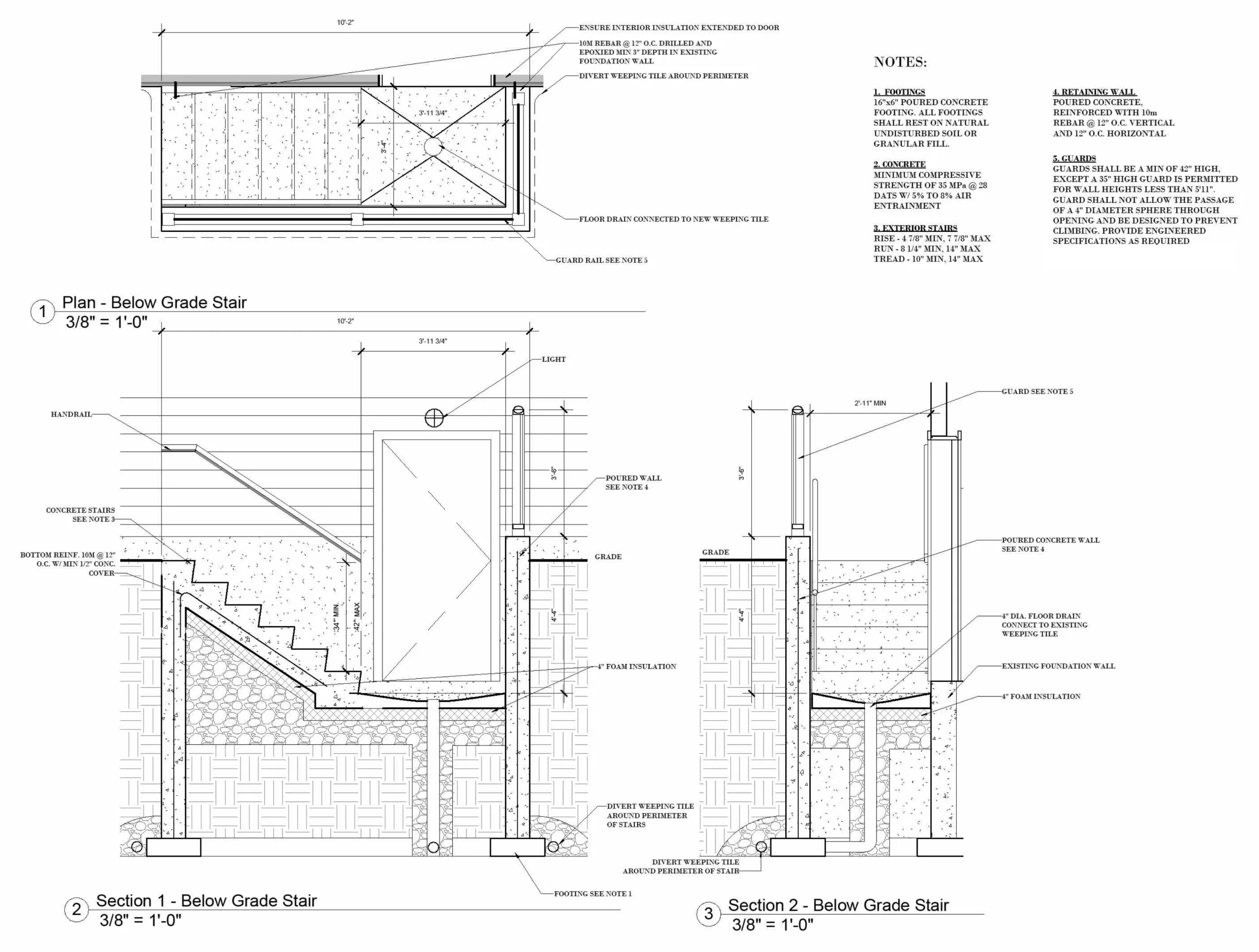

Below-grade exterior stair: plan and two sections with foundation, drainage and guard notes. Open full size: Plan and two sections of a below-grade exterior stair with foundation walls, drainage and guard notes (opens in a new tab)
Residential HVAC design
A page from a residential HVAC design report: the design conditions and the heating and cooling loads, broken down by component.

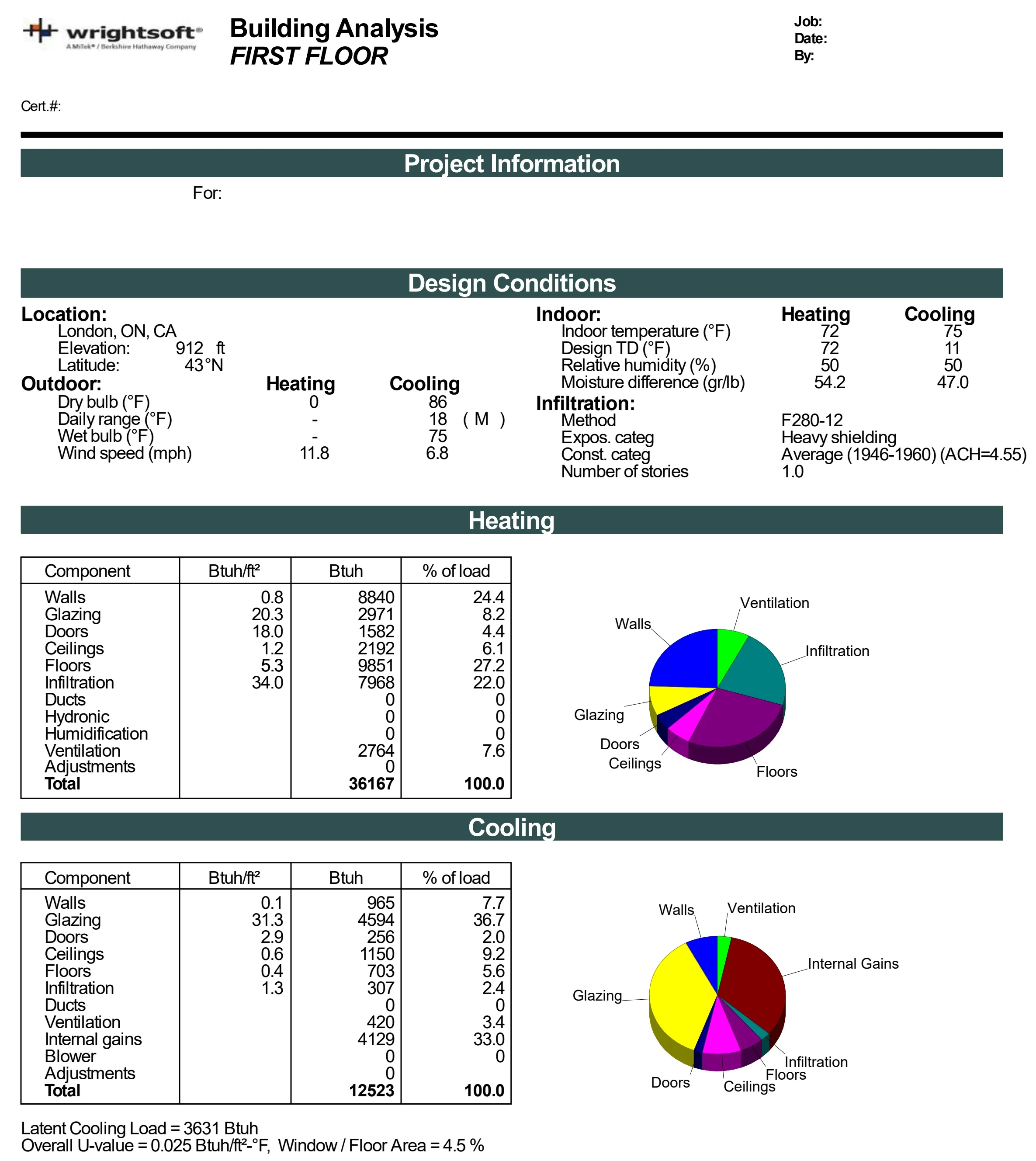

Building analysis from an HVAC design: design conditions, and heating and cooling loads by component. Open full size: HVAC building analysis report page with design conditions, heating and cooling load tables and pie charts by component (opens in a new tab)
